Introducing maximum efficiency and unrivalled mobility! The CDI Model C60 has an on-board
Heavy Duty Jaw Crusher with an Hydraulically adjustable CSS to suit required output size. Its
on-board conveyor stockpiles crushed material and folds for transport. All components are
driven direct from a standard 50hp to 90hp Tractor. It can be fed from a Conveyor or directly
from a Digger. It is towed to and from site via the same Tractor that drives it.
Applications
Outputs up to 60 Tonnes per hour
Primary or secondary Crushing
Digger Feed
Conveyor Feed
Recycled Aggregates
Demolition materials
Hard Rock
Sand and Gravel.
Glass
Coal
Limestone
Power Required will depend on the
application and Material.
Range 50-90hp
Will Crush most materials.
Specifications
Machine Weight = Approximately 6Tonne depending on Options.
Integrated Independent Hydraulic Controls for all hydraulic Components.
Robust Heavy Duty Mobile chassis. (Super single braked Wheels)
Single Toggle 640×400 Jaw Crusher (Driven direct from Tractor PTO)
Feed Size up to 350mm
Hydraulic adjustable CSS Setting. 25mm to 100mm(Output size)
650mm Wide Chevron Discharge belt (Driven direct from Tractor hydraulics)
Manual folding Discharge conveyor. (Discharge Height 2.33m)
4No Hydraulic Jacking Legs. (front 2 independent from rear 2)
Hydraulic Brakes.
Folding Hopper bin.(2m x 1.9m opening)
Variable Feed height = 2.8m to 3m

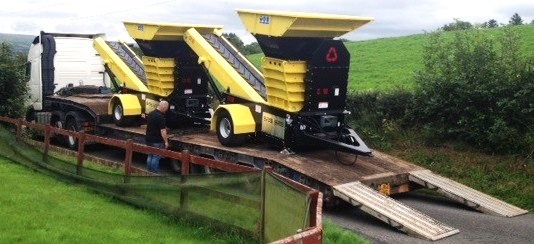

Machine folds for Containerization. (3 machines per 12m high cube container)

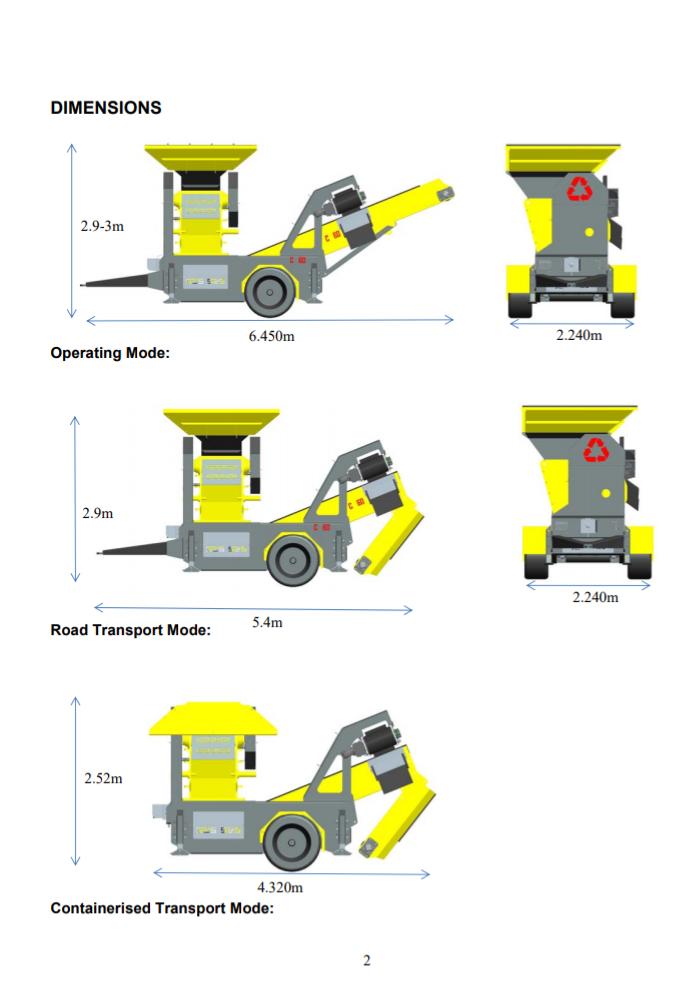

Road Transport Dimensions = 5.4m Long x 2.9m High x 2.24m Wide.
Containerized Dimensions = 4.2m Long x 2.52m High x 2.24m Wide.
Operating Dimensions = 6.45m Long x 2.8m-3m High x 2.24m Wide.
Optional On-board Magnetic Conveyor with all mountings available at additional cost.
Optional Hydraulic folding Discharge conveyor control available at additional cost.
Optional 12V Crusher Max Overspeed Sensor available at additional cost (not req’d
on modern tractors with Pto speed output monitor/revcounter)
