Key Advantages of BIZON-150:
- High Crushing Efficiency:
The elliptical motion of the jaw plate ensures consistent material fragmentation and high output – up to 7.5 t/h.
- Robust and Simple Construction:
Made of high-strength materials, including wear-resistant jaw plates made from a special alloy, the crusher guarantees long service life and abrasion resistance.
- Easy Maintenance and Servicing:
Replaceable working elements, easy access to internal components, and a simple belt drive system reduce downtime and operating costs.
- Safe Operation:
Rubber inserts in the feed hopper reduce dust emissions and improve operator comfort.
- Flexible Power Supply:
Available with electric motors (4–5.5 kW) or a petrol engine (7 HP), giving users options based on their work environment.
Operating Principle:
The crusher operates via an eccentric shaft that moves the jaw plate in an elliptical up-and-down motion. The material is gradually crushed between the fixed and moving jaws. The desired output size is easily adjusted by changing the jaw gap.
Technical Specifications:

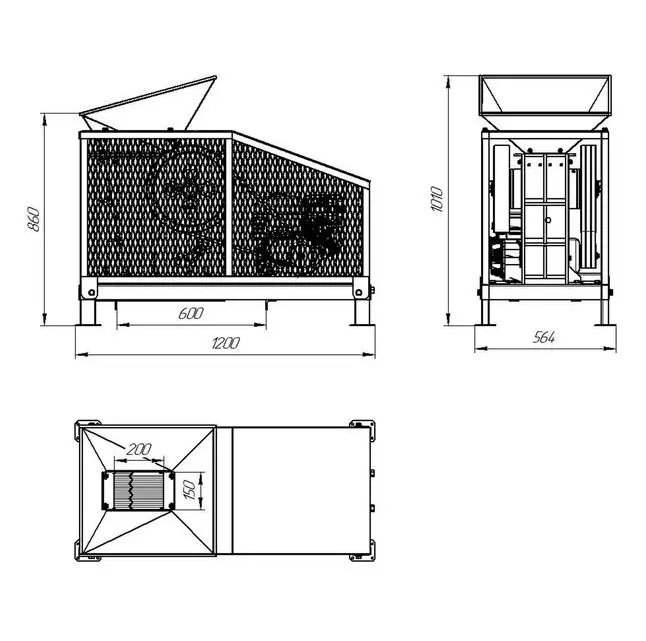

Feed opening: 150 × 200 mm
Drive types: Electric motor: 4 kW / 5.5 kW; Petrol engine: 7 HP
Weight: 305 kg
Performance: At 10 mm fraction: up to 1.5 t/h; At 50 mm fraction: up to 7.5 t/h
The BIZON-150 jaw crusher is a highly efficient, practical tool essential for any construction site, recycling center, or processing plant. Its modular design allows it to be mounted on trailers or vehicles, making it perfect for remote operations.
