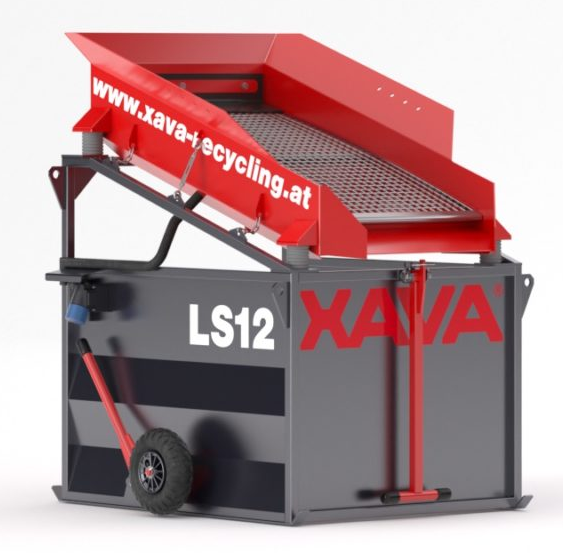

XAVA LS12

With the XAVA vibrating screen LS12, a wide variety of materials can be screened and recycled. With the right choice of screen mesh, everything from compost to wood chips, earth, gravel, sand, C&D waste, brick debris, etc. can be screened. The separated material can be reused immediately. The screening machine LS12 is designed in a way that the screened material can fall directly into a wheelbarrow, which allows an easy and fast use of the final product.

  • SIMPLE OPERATION – standard 230V or 110V socket connection
  • CLEAN – purely electric drive, no site contamination due to damaged hydraulic lines or similar
  • FLEXIBLE – separation of various materials thanks to the use of different screen meshes
  • LITTLE WEIGHT – very easy manoeuvring thanks to LIFT & MOVE system
  • LOW MAINTENANCE – screws must be checked, maintenance-free bearings on the vibration motor
  • STUDDED TYRES – provide better traction on every surface
XAVA LS12

Vibrating Screen LS12

Weight: 190 kg
Vibration motor: 0.16 kW, 1,500 RPM
Connection: 230 V
Height: 1,440 mm
Footprint: 1,180 mm x 1,210 mm
Screen surface: 1,180 mm x 1,210 mm
