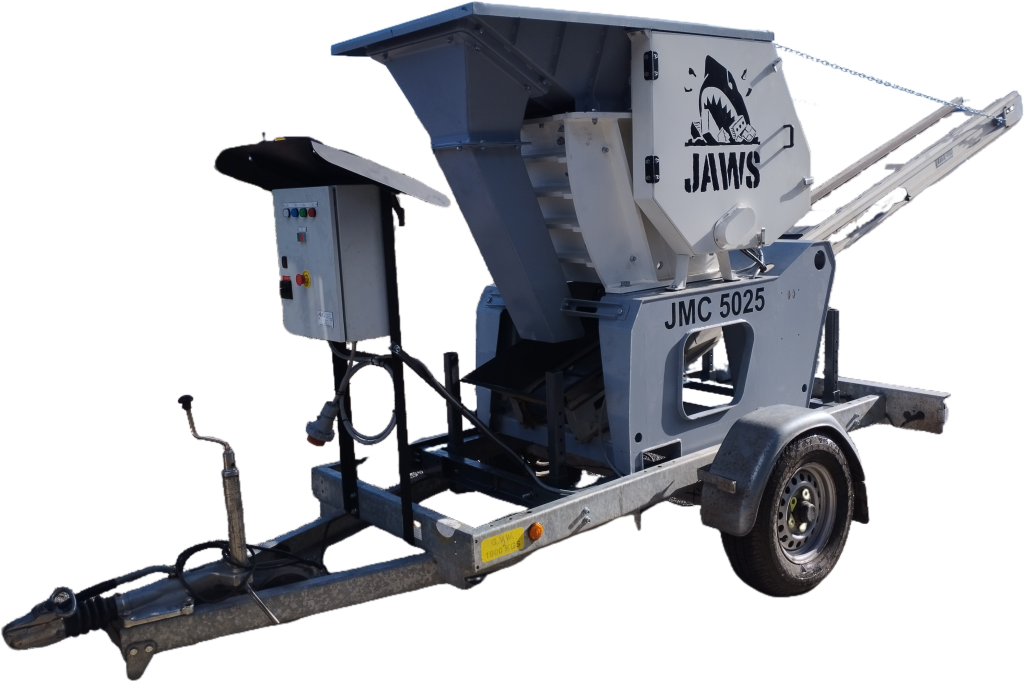

JMC5025 Trailer-Mounted Electric Jaw Crusher – Mobile, Emission-Free Crushing On the Move

The JMC5025 Trailer-Mounted Electric Jaw Crusher from Jaws Mini Crushers UK combines heavy-duty performance with unbeatable mobility. Designed to offer compact, zero-emission crushing with the convenience of trailer-based transport, this machine is the perfect solution for contractors, plant hire businesses, and recyclers working across multiple job sites.

Whether you’re processing concrete, brick, rubble, or inert waste, this towable electric crusher is engineered to deliver reliable, high-performance results with minimal setup and no fuel emissions.

⚙️ Key Features & Specifications:

✅ Jaw Opening: 500mm x 250mm
High-capacity jaw for effective onsite crushing of hard materials including concrete and demolition waste.
✅ Hydraulic Closed Side Setting (CSS) Adjustment
Enables flexible output size control from 15mm to 75mm for different material requirements.
✅ Efficient 11kW Electric Drive
Runs on a 3-phase 400V supply, providing clean and consistent power with low operational cost and zero onsite emissions.
✅ Twin-Axle Trailer with Folding Conveyor Option
Choose from 2700kg or 3500kg rated trailers. Folding discharge conveyor option available for compact transport and efficient operation.
✅ Lightweight & Road-Towable
With a base trailer weight of 2000kg (excluding conveyor), it’s easy to tow to site using a standard commercial vehicle.
✅ Quick Setup in Minutes
Simply unhitch, lower the four stabiliser legs, slot the discharge conveyor into place, connect to power—and you’re ready to crush.

🌍 Versatile Crushing with Zero Onsite Emissions

This electric crusher is ideal for use in:

Low-emission zones
Urban and residential sites
Enclosed workspaces and indoor environments
Quick-turnaround jobs with mobile setup requirements

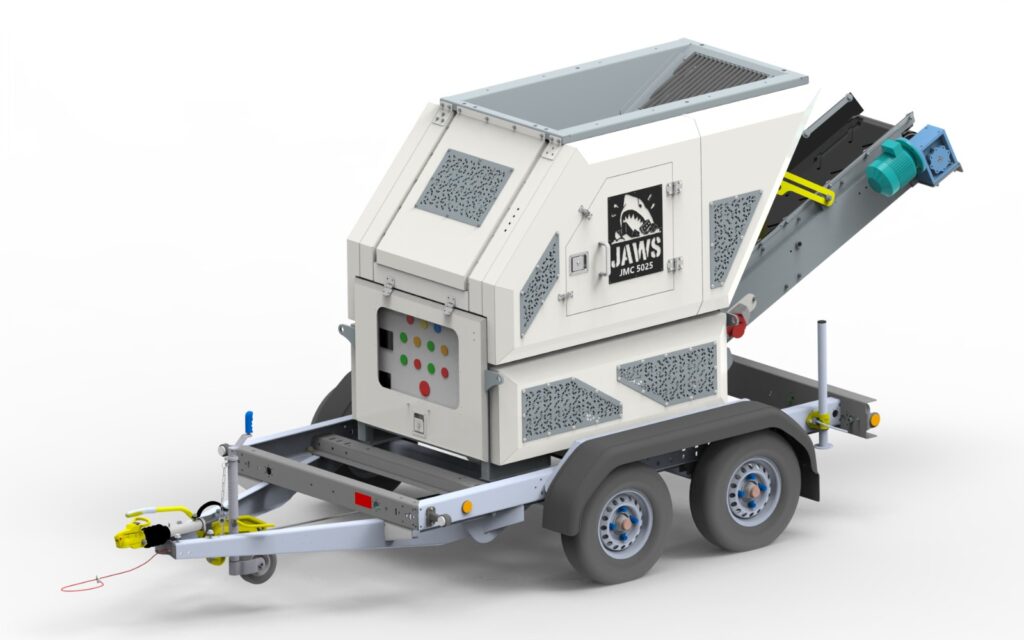

JMC5025 Trailer-Mounted Jaw Crusher

Compact. Powerful. Transportable.

The JMC5025 Trailer-Mounted Jaw Crusher is a compact, heavy-duty 500 × 250 mm jaw crusher designed for contractors, demolition companies, landscapers, plant hire companies and recycling businesses looking to process inert waste on site.

Powered by an 11 kW three-phase electric motor and featuring hydraulic Closed Side Setting (CSS) adjustment, the JMC5025 delivers controlled crushing performance in a compact and highly transportable package.

The major advantage is simple: take the crusher to the material rather than transporting the waste away.

With its trailer-mounted design, the JMC5025 can be easily transported to site on a suitable 2,700 kg trailer, making it an ideal solution for contractors who need to move their crusher between multiple jobs.

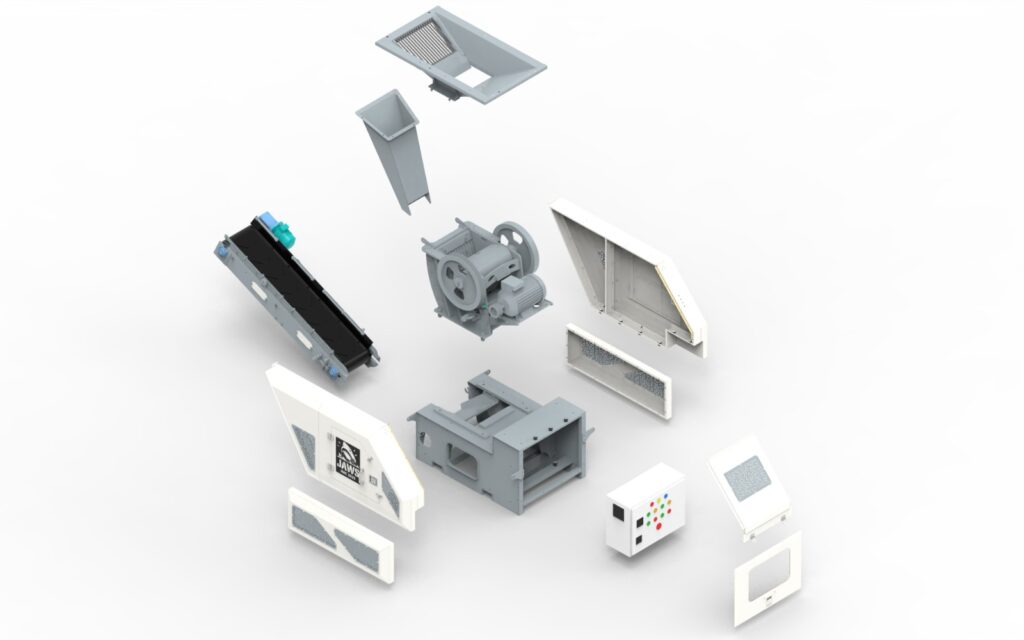

A 500 × 250 mm Jaw Crusher Designed for Recycling

At the centre of the JMC5025 is a robust 500 × 250 mm jaw crusher, providing the crushing capacity required for a wide range of construction and demolition materials.

The crusher is designed for demanding applications where reliability, durability and ease of operation are essential.

A heavy-duty cast steel pitman provides the strength and fatigue resistance required for continuous crushing, while the robust crusher frame is engineered to withstand the forces generated during high-impact crushing applications.

The result is a compact crusher with the construction and mechanical design expected from a much larger machine.

Hydraulic CSS Adjustment

The JMC5025 incorporates a hydraulic Closed Side Setting adjustment system, allowing the operator to quickly alter the crusher setting to suit the required product.

The hydraulic twin-taper wedge arrangement provides controlled adjustment of the jaw opening.

CSS range: 15–75 mm

This gives the operator the flexibility to produce different recycled aggregate sizes from the same machine.

Whether you are producing material for hardcore, sub-base, access roads, landscaping or general site reuse, the crusher can be adjusted to suit the application.

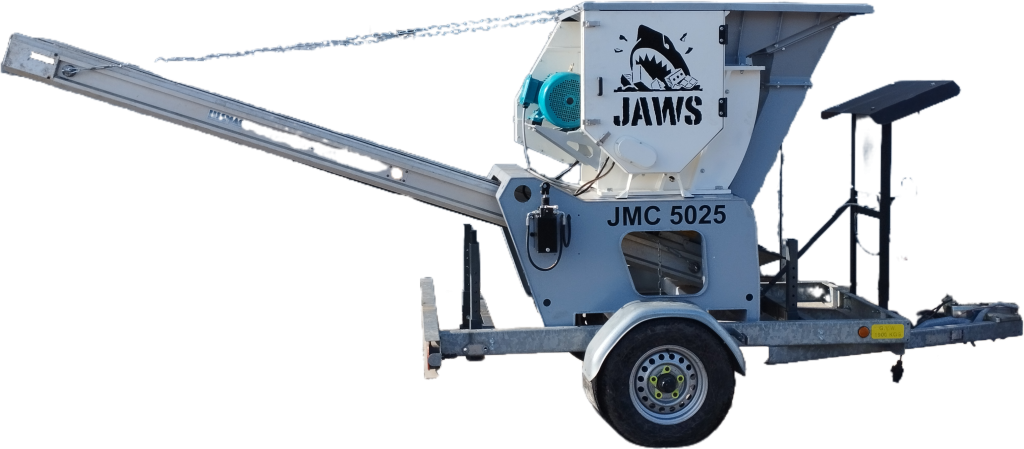

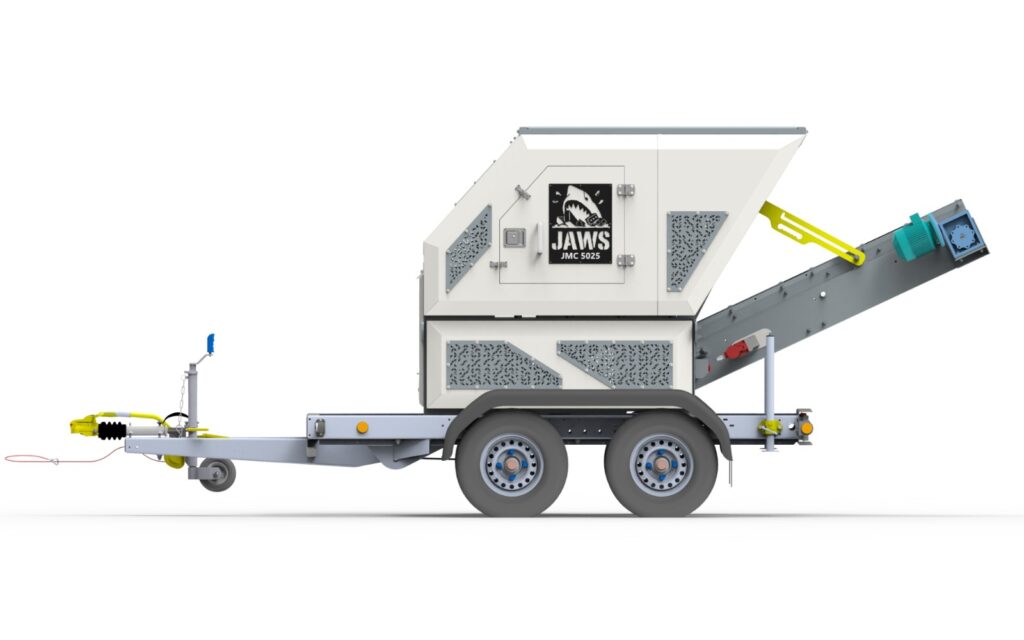

Designed for Trailer Transport

One of the key features of the JMC5025 is its trailer-mounted configuration.

The crusher is mounted on a robust structural chassis designed for transportation and rapid deployment.

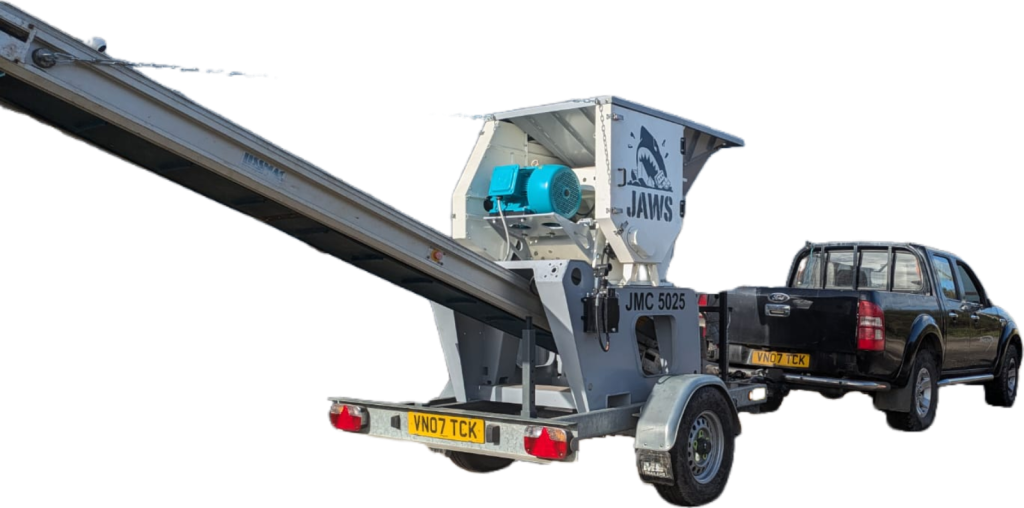

The machine can be transported on a suitable 2,700 kg trailer, allowing contractors to move the crusher between sites without requiring specialist low-loader transport.

Once on site, the machine can be positioned close to the waste material and put to work.

Less transport. Less handling. More recycling.

Electric-Powered Crushing

The JMC5025 uses an 11 kW, 400 V three-phase electric motor to drive the jaw crusher.

Electric power provides a practical solution for sites with suitable electrical supplies or generators and eliminates diesel engine emissions from the crusher itself.

The integrated electrical control system provides controlled operation of both the crusher and discharge conveyor.

Integrated Feed Hopper and Static Grizzly

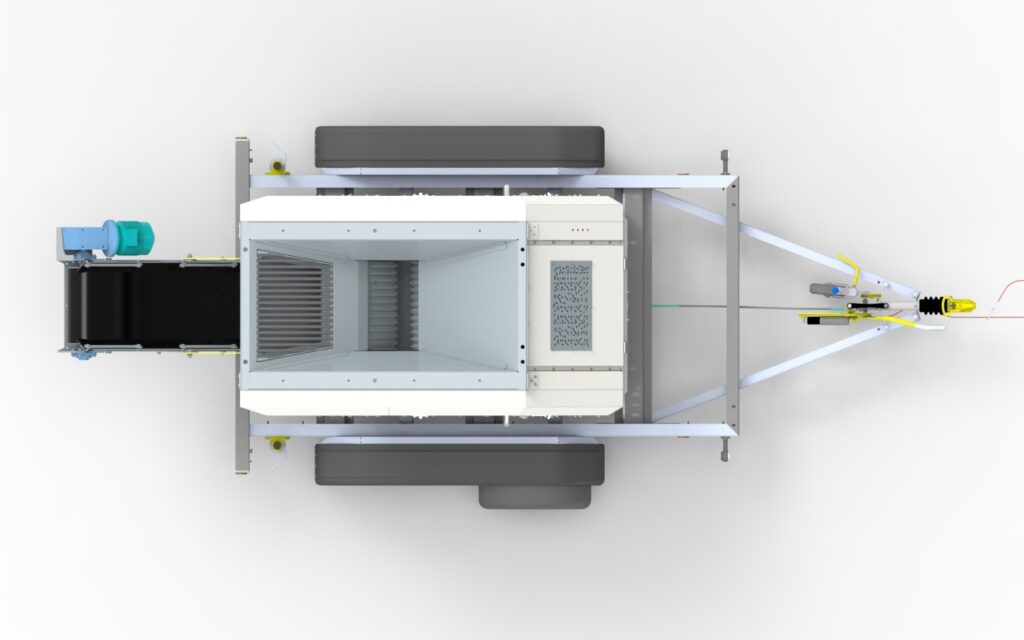

The JMC5025 incorporates a practical feed hopper with an integrated static grizzly section.

The grizzly allows smaller material and fines to pass through the crusher feed system rather than unnecessarily entering the jaw.

This can help:

Improve material flow
Reduce unnecessary crushing
Reduce wear on the jaw plates
Improve overall crushing efficiency
Handle mixed construction and demolition material more effectively

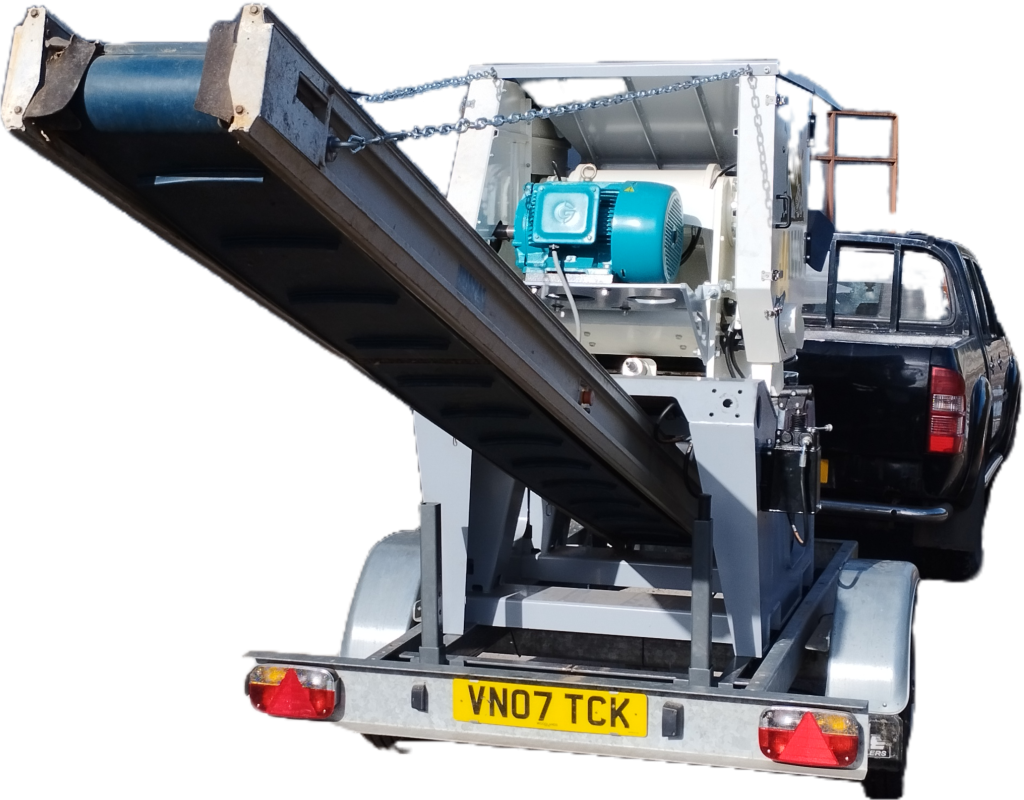

Folding Discharge Conveyor

The JMC5025 can be supplied with a manually folding discharge conveyor, providing an integrated solution for moving crushed material away from the jaw.

The conveyor can be folded for transportation and storage, helping to keep the overall machine footprint compact when moving between sites.

What Can the JMC5025 Crush?

The JMC5025 is designed primarily for processing inert construction and demolition waste.

Typical applications include:

Concrete

Crush waste concrete, concrete slabs and demolition concrete into reusable aggregate.

Paving Slabs

Process old paving slabs and hard landscaping materials instead of sending them to waste.

Bricks & Blocks

Crush bricks, blocks and masonry into material suitable for reuse around the site.

Indian Stone & Masonry

Process unwanted natural stone, paving and masonry generated during landscaping and construction projects.

Construction & Demolition Waste

Reduce suitable inert C&D waste and produce recycled aggregate for use in subsequent site works.

Tiles & Ceramics

Process suitable ceramic and tile waste into smaller aggregate fractions.

Turn Waste Into Reusable Aggregate

The JMC5025 is designed around a simple principle:

Crush it. Recycle it. Reuse it.

Instead of loading inert waste onto a skip or muck-away vehicle, transporting it from site and then buying new aggregate, contractors can process suitable material where it is produced.

This can reduce the amount of material leaving site while creating a useful recycled product for applications such as:

Site access tracks
Hardstanding
Drainage applications
Landscaping
Backfilling
Temporary roads
General hardcore
Sub-base applications

The suitability of recycled material for a particular application will depend on the material processed and relevant project specifications.

JMC5025 Production Guide

Indicative production rates for C&D waste and recycled concrete are shown below:

Closed Side Setting	Estimated Output
10 mm	2–4 TPH
20 mm	4–7 TPH
30 mm	6–10 TPH
40 mm	9–13 TPH
50 mm	11–15 TPH

Actual production will vary according to feed material, feed size, moisture content, loading method, crusher setting and operator technique.

JMC5025 Key Specifications

Specification	JMC5025
Jaw Size	500 × 250 mm
Drive Motor	11 kW, 400 V, 3 Phase
CSS Adjustment	Hydraulic
CSS Range	15–75 mm
Pitman	Cast Steel
Feed System	Hopper with Static Grizzly
Discharge	Folding Conveyor
Configuration	Trailer Mounted
Trailer Option	2,700 kg
Application	C&D Waste, Concrete, Brick, Stone & Masonry

Why Choose the JMC5025?

The JMC5025 combines the features normally associated with larger crushing equipment with the transportability required by smaller contractors.

500 × 250 mm jaw – serious crushing capability in a compact machine.

Hydraulic CSS adjustment – quickly change the crushing setting to suit the required output.

11 kW electric drive – efficient electric-powered crushing without diesel emissions from the machine.

Cast steel pitman – engineered for durability under demanding crushing conditions.

Trailer mounted – designed to be easily transported between jobs.

Folding conveyor – integrated material handling without the need for a separate conveyor.

Static grizzly – helps manage fines and improve feed material flow.

A Compact Crusher That Goes Where You Work

The JMC5025 is particularly suited to businesses that regularly move between projects.

From a demolition contractor processing concrete on a demolition site to a landscaper recycling paving and stone, the machine provides a practical way to bring crushing capability directly to the job.

Don’t transport the waste when you can process it on site.
