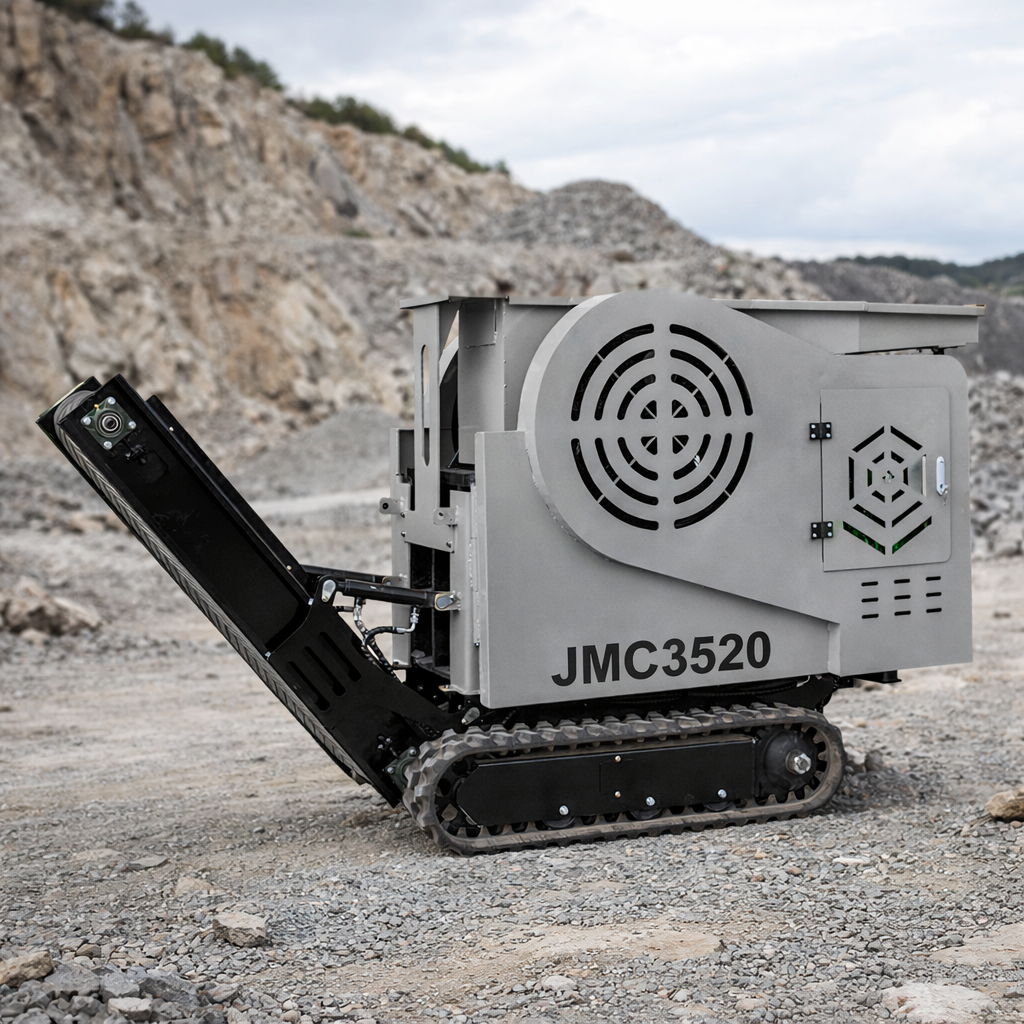

JMC-3520T Crawler Jaw Crusher
Compact Mobile Jaw Crusher for On-Site Recycling and Small-Scale Crushing
The JMC-3520T Crawler Jaw Crusher is a compact, track-mounted crushing solution designed for small to medium-scale operations. Engineered for efficiency, manoeuvrability, and straightforward operation, it is ideally suited to construction waste recycling, landscaping projects, light demolition works, and small quarry applications.
With its hydraulic track drive system and integrated crushing unit, the JMC-430 provides a practical solution for contractors requiring reliable on-site crushing without the need for extensive support equipment.
High-Efficiency Jaw Crushing System
The JMC-3520T is fitted with a proven jaw crusher mechanism, forming a powerful crushing chamber between the fixed and moving jaw plates. The movable jaw is driven by an eccentric shaft, creating a reciprocating motion that applies compressive force to incoming material.
Material enters through a 220 x 350mm feed opening and is crushed through a combination of compression and bending forces. The result is a consistent output size ranging from 15–50mm, suitable for reuse as recycled aggregate or further screening.

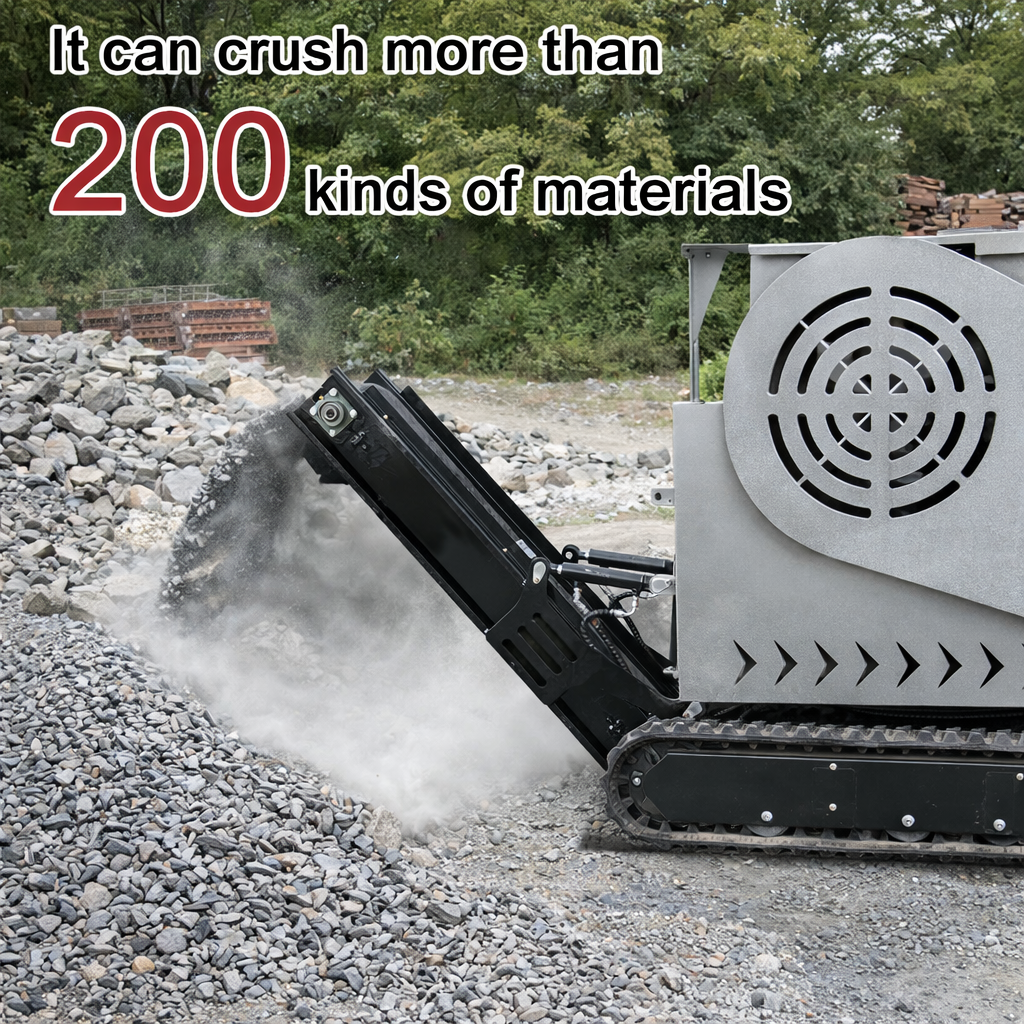

Crushed material is discharged via a 400mm wide conveyor belt, with adjustable discharge height for efficient stockpiling.
Mobile Crawler Design for Maximum Flexibility
Mounted on 180mm rubber tracks, the JMC-3520T offers excellent site mobility and stability. The hydraulically powered track system enables smooth travel at speeds of up to 3 km/h, allowing operators to reposition the machine quickly across uneven or restricted ground conditions.
The direct engine-to-hydraulic pump configuration ensures responsive control and consistent power delivery to both the crushing and tracking systems.
Engine and Hydraulic System
The standard configuration is powered by a Rato R500-V2 18HP petrol engine (13kW at 3600rpm), delivering dependable performance for small-scale crushing operations.
Key power and fluid capacities:
- Fuel tank capacity: 6.5L
- Engine oil capacity: 1.0L
- Hydraulic tank capacity: 35L (32#/46 hydraulic oil)
The machine operates via manual hydraulic valve control, providing straightforward and reliable operation of the crushing, tracking, and conveyor lifting functions.

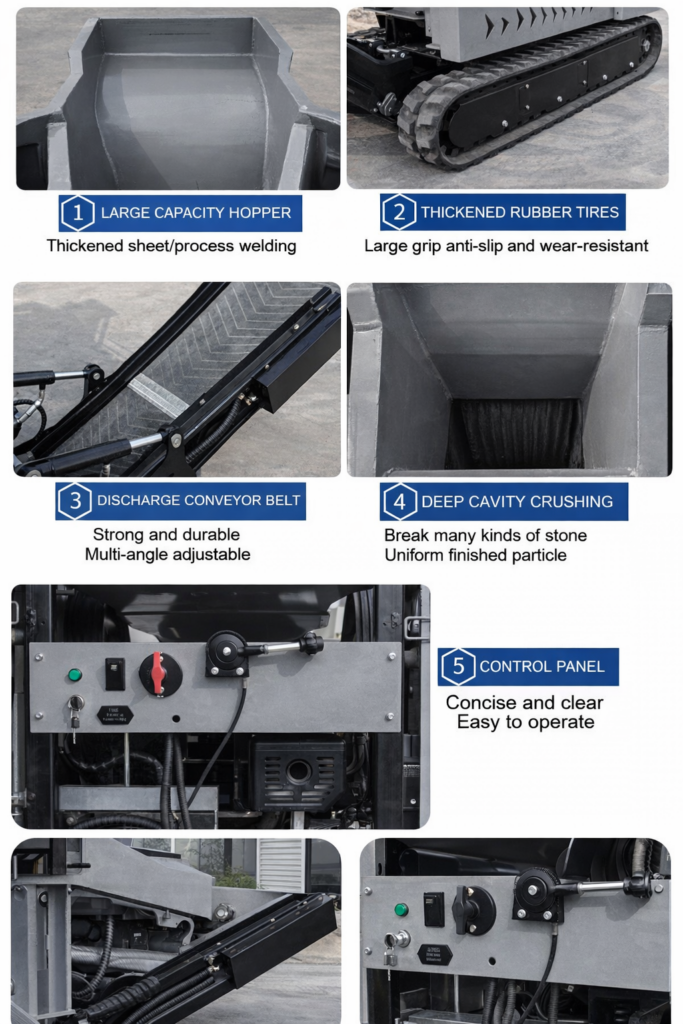

Designed for Easy Maintenance
The JMC-3520T features a fully opening engine cover for simplified servicing and inspection. Standardised jaw crusher components allow for straightforward parts replacement and reduced downtime.
Track tension adjustment is mechanical, and the jaw mechanism is lubricated via grease, ensuring simple routine maintenance procedures.

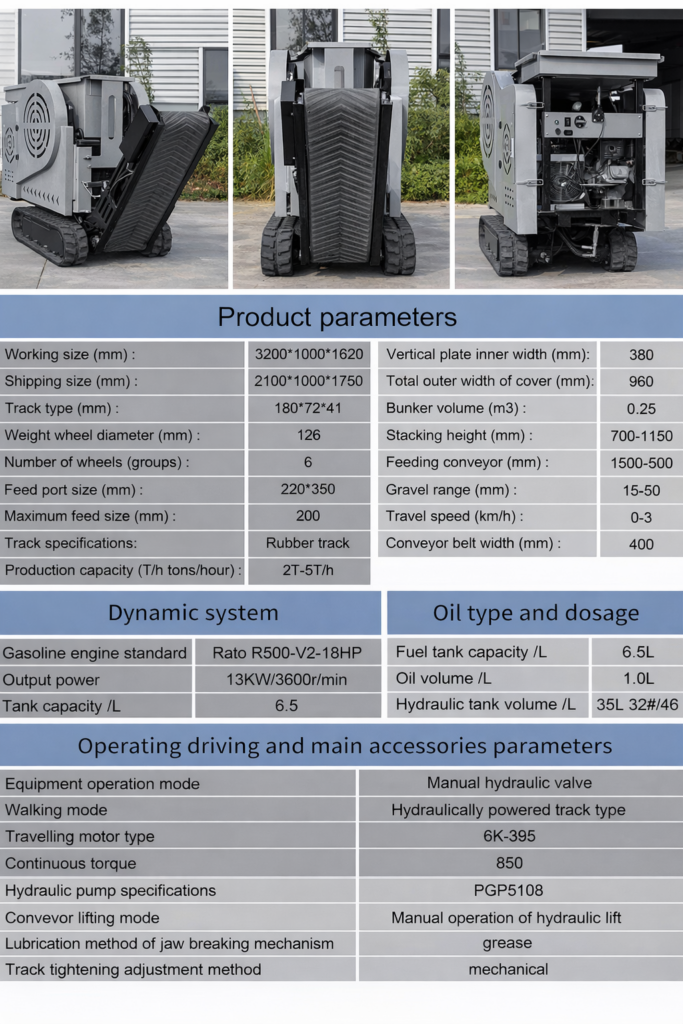

Technical Specifications
Product Parameters
- Working size: 3200 x 1000 x 1620mm
- Transport size: 2100 x 1000 x 1750mm
- Feed opening: 220 x 350mm
- Maximum feed size: 200mm
- Output size range: 15–50mm
- Production capacity: 2–5 TPH
- Hopper capacity: 0.25m³
- Conveyor belt width: 400mm
- Feeding conveyor: 1500 x 500mm
- Stacking height: 700–1150mm
- Travel speed: 0–3 km/h
- Track type: Rubber track (180 x 72 x 41)
Applications
The JMC-3520T Crawler Jaw Crusher is suitable for:
- Concrete and brick recycling
- Small demolition projects
- Landscaping and groundwork
- Farm and estate maintenance
- Small quarry or stone crushing operations
- On-site aggregate production
Why Choose the JMC-3520T?
- Compact and easily transportable
- Simple hydraulic operation
- Efficient crushing performance
- Low operating complexity
- Ideal for restricted access sites
- Cost-effective recycling solution
For contractors seeking a reliable, compact mobile jaw crusher capable of producing quality recycled aggregate directly on site, the JMC-430 offers a practical and efficient solution.
For pricing, availability, or further technical information, please contact our team.
