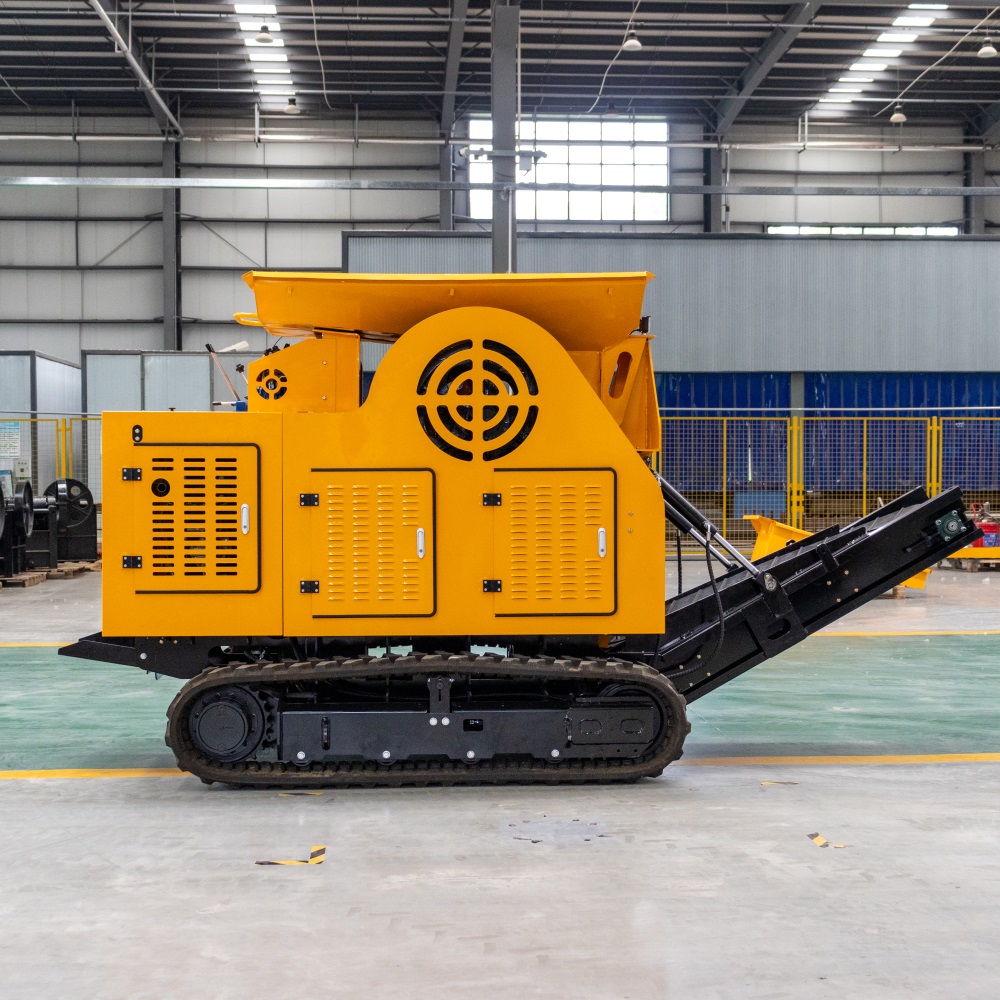

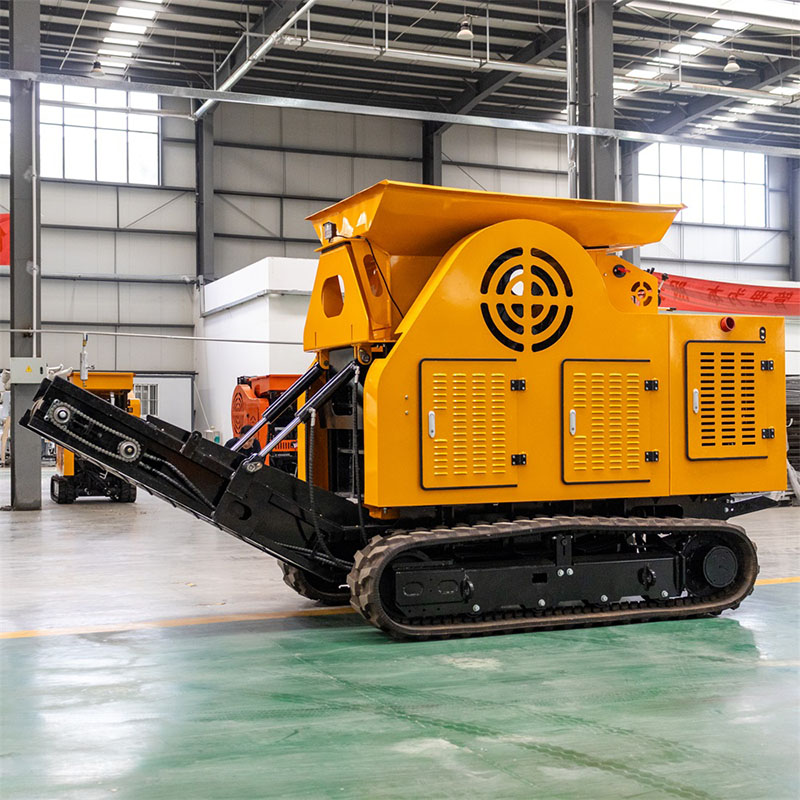

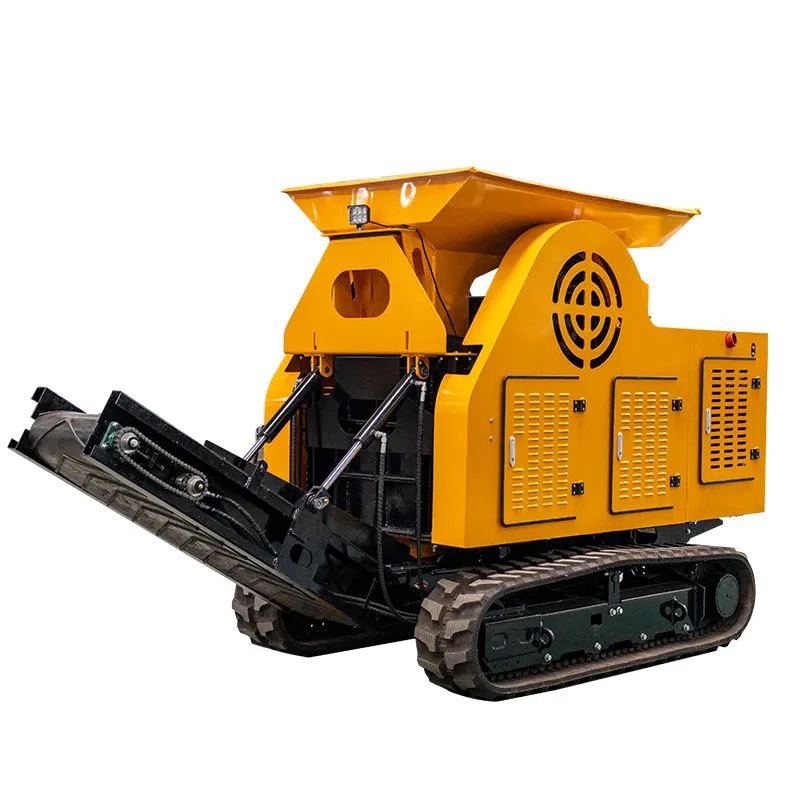

JMC4022T Crawler Jaw Crusher
Compact Mobile Jaw Crusher for On-Site Crushing and Recycling
The JMC4022T Crawler Jaw Crusher is a highly versatile, track-mounted crushing solution designed for a wide range of applications including construction waste recycling, road construction, quarrying, and small mining operations. Combining the mobility of a crawler platform with the reliability of a proven jaw crushing system, it provides an efficient and practical solution for on-site material processing.
Its compact footprint and integrated design make it ideal for contractors requiring dependable primary crushing in restricted or remote working environments.
Powerful and Efficient Crushing Performance
The JMC4022T is equipped with a professional jaw crushing mechanism capable of processing materials such as:
- Concrete and demolition waste
- Natural stone and aggregates
- Ore and rock
- Bricks and rubble
Material enters the crushing chamber through a 250 x 400mm feed opening, where it is compressed between the fixed and moving jaw plates. This action produces a consistent output size ranging from 20–60mm, suitable for reuse, screening, or further processing.
With a production capacity of 5–10 tonnes per hour, the machine delivers reliable performance for small to medium-scale crushing projects.
Mobile Crawler Design for Flexible Operation
The hydraulic crawler system allows the machine to move independently across site without the need for additional transport equipment. This enables operators to position the crusher exactly where it is needed, reducing material handling time and lowering operational costs.
Key mobility benefits:

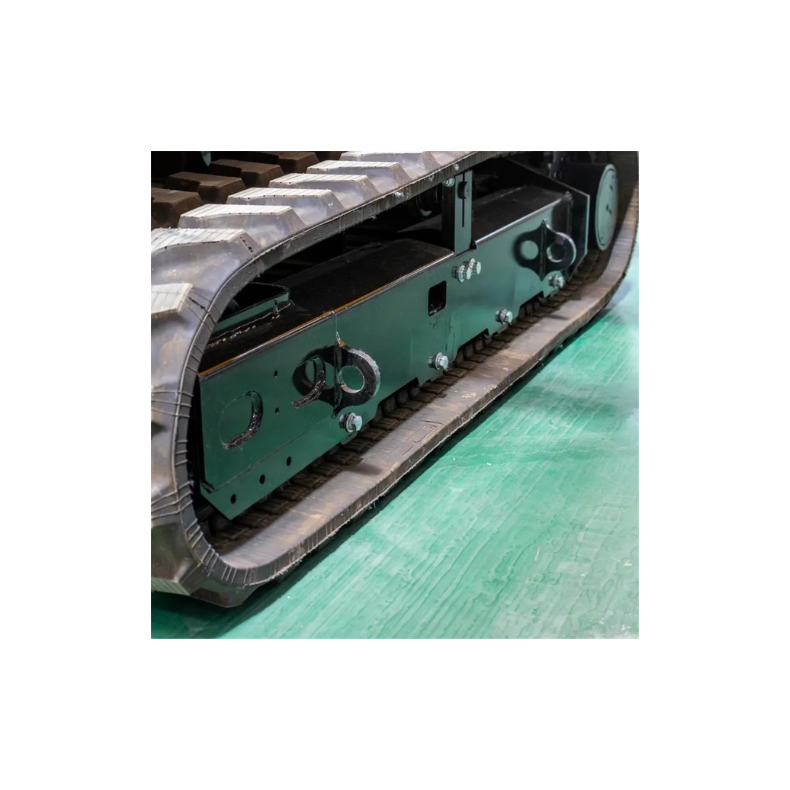

- Hydraulic track drive system
- Rubber tracks for stability and reduced ground damage
- Travel speed up to 4 km/h
- Easy access to tight or uneven work areas
Engine and Power System
The JMC4022T is powered by a dependable Kubota D1105 diesel engine (Euro V compliant), delivering consistent power for both crushing operations and machine travel.
Power and fluid specifications:
- Maximum output power: 19kW at 2350 rpm
- Fuel tank capacity: 50L
- Engine oil capacity: 4L
- Hydraulic oil tank capacity: 50L (32#/46# hydraulic oil)
The hydraulic system ensures smooth and responsive control of the crusher, tracks, and conveyor functions.
Smart and Practical Structural Design
The JMC4022T features an integrated and compact layout, making it easy to transport, position, and operate. The crushing chamber has been designed to improve material flow, increase throughput, and reduce the likelihood of blockages.
The machine includes a user-friendly control system that allows operators to monitor performance and adjust working parameters quickly to maintain consistent production.
Key mechanical features:
- Manual hydraulic valve operation
- Hydraulic piston pump A10VSO28
- Hydraulic plunger motor drive
- Cycloid motor-driven conveyor system
- Hydraulic conveyor lifting cylinder
- Grease lubrication for jaw mechanism
- Grease-based track tension adjustment
Technical Specifications
Equipment Parameters
- Working size: 4050 x 1450 x 2050mm
- Transport size: 2750 x 1450 x 2050mm
- Feed opening: 250 x 400mm
- Maximum feed size: 230 x 380mm
- Output size range: 20–60mm
- Production capacity: 5–10 TPH
- Hopper capacity: 0.4m³
- Conveyor belt width: 400mm
- Stacking height: 950–1000mm
- Track model: 300 x 86 x 52.5
- Track type: Rubber track
- Travel speed: 0–4 km/h
- Total outer cover width: 1250mm
Applications
The JMC4022T Crawler Jaw Crusher is suitable for:
- Primary crushing at small quarry sites
- Construction and demolition waste recycling
- Road construction aggregate processing
- On-site concrete and brick crushing
- Small mining and stone processing projects
Key Benefits
- Compact and easy to transport
- Strong crushing performance in a small footprint
- Mobile crawler system for site flexibility
- Simple hydraulic controls for ease of operation
- Reliable Kubota diesel engine
- Ideal for on-site recycling and material reduction
A Reliable Solution for Mobile Crushing
Whether used for primary crushing in quarry operations, recycling material on demolition sites, or producing aggregate for roadworks, the JMC4022T Crawler Jaw Crusher delivers efficient, mobile, and dependable performance. It is a practical solution for contractors looking to reduce waste, cut transport costs, and produce reusable material directly on site.
