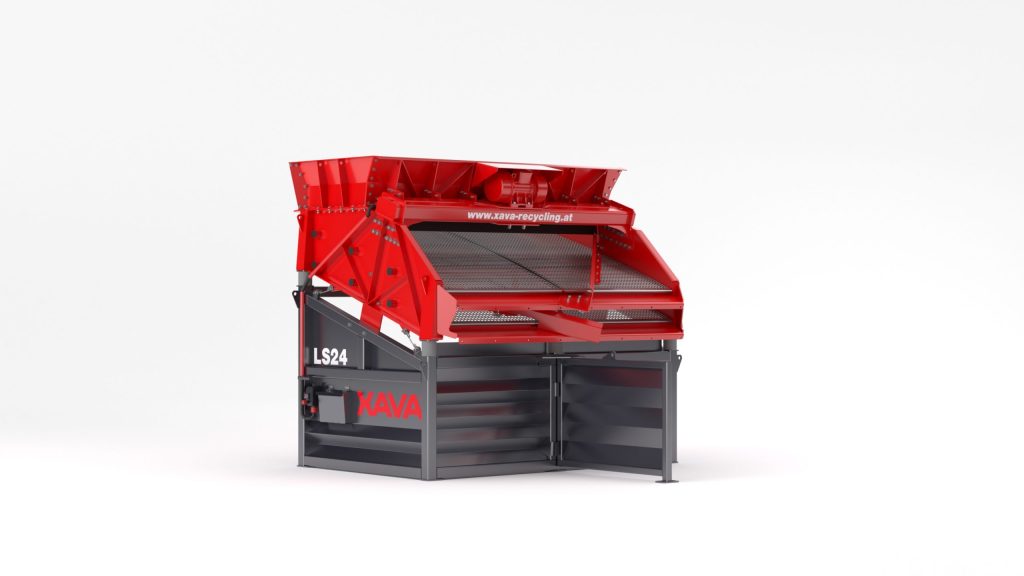

XAVA LS24 Vibrating Screen
feeding material can be separated into 2 or 3 different fractions. Whether it is final material from a crusher (impact crusher / jaw crusher), C&D waste, brick debris, top soil, sand, compost, wood chips, bark mulch, gravel, etc. everything is carefully screened in 2 or 3 different final material sizes (without / with chutes).
- SIMPLE OPERATION – connection to 16A high voltage current
- CLEAN – purely electric drive, no site contamination due to damaged hydraulic lines or similar
- FLEXIBLE – separation of various materials thanks to the use of different screen meshes
- UP TO 3 FRACTIONS – with removable discharge chutes and separation plate
- LOW MAINTENANCE – screws must be checked, maintenance-free bearings on the vibration motor
- EASY TRANSPORT – with a standard car trailer, easy manoeuvring with a XAVA lifting device
7.11 m² SCREEN SURFACE
Weight: 1,400 kg (incl. lifting device)
Vibration motor: 1.15 kW, 1,500 RPM
Connection: 380 V, 50 Hz, 16 A
With operating hours counter
Height: 2,290 mm
Footprint: 2,400 mm x 1,580 mm
Screen surface: 2 x 2,180 x 1,630 mm
Screen upper deck: 2 Units 1.630 x 1.090 mm
Screen lower deck: 2 Units 1.630 x 1.090 mm
