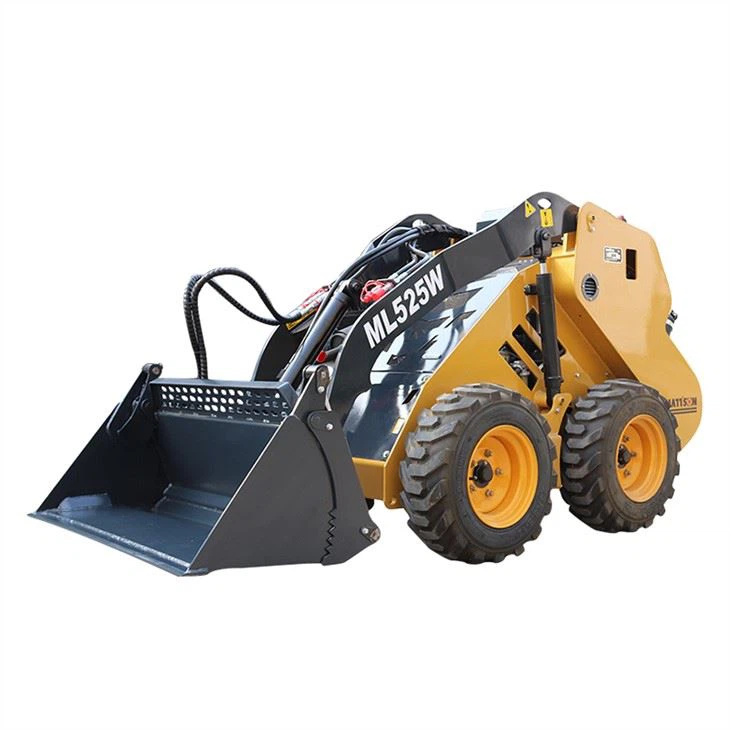

All wheel steer skid steer is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable mulitifunctional tools, it can finish all kinds of comprehensive construction demand easily. The apperance, heightlifting, weightlifting and driving comfort are all the top-notch loader in the world.
Always supply the high quality machine and Variously styles can meet the customers’ all kinds of request.
Product Specifications
| ITEMS | DIMENSIONS | ITEMS | DIMENSIONS | ||
| A | Angle of Departure | 22° | L | Operating Height | 2623 mm |
| B | Carry Position | 176 mm | M | Rollback @ carry Position | 20° |
| C | DumpAngle @ Maximum Height | 37° | N | Rollback Fully Raised @ Maximum Height | 93° |
| D | Dump Height with Standard Bucket | 1279 mm | |||
| E | Dump Reach @ Maximum Height | 834 mm | O | Wheel Base | 775 mm |
| F | Ground Clearance | 193mm | P | Turning Radius with Standard Bucket | 1621 mm |
| G | Ground Clearance-under platform | 185 mm | Q | Width 23×8.5-12 | 1080 mm |
| H | Height to Bucket Hinge Pin | 1867 mm | |||
| I | Height | 1297 mm | R | Wheel Tread 23×8.5-12 | 856 mm |
| J | Length without Attachment | 1969 mm | |||
| K | Length with Standard Bucket | 2605 mm | S | Width with 36″ Bucket | 1250 mm |
Product Advantages
1)Multi-function, High cost performance. With dozens of matching assistive devices, it is very easy operation, conveniet maintenance, and wide application.
2)Strong driving power: the engin power is from 25Hp to 50Hp, adopt the Kubota engine and Perkins engine and established a long-term partnership to ensure the machine is capable of working in a variety of envirement.
3)Perfect hydraulic system: Full hydraulic pilot control,hydraulic self-balancing.
4)Durable structure parts: All structure parts are with our own R&D, design and manufacturing by ourselves, which are beautiful and durable.Hydraulic oil tank, fuel tank and chassis combined as one, which maximizes the performance of the machine and makes the working arm and body to achieve the perfect combination.
5)The key components are all imported products.
